Pasteurizer Model SPTP China Supplier
Equipment Description
Pasteurizer (Tube heat exchanger) is widely used for sterilization in the oil fat and milk processing industry, the material will be heated up to 75-90 degree, and kept for a short time, about 15-16 seconds, it can kill the pathogenic bacteria, while can keep most of the nutrition ingredient.

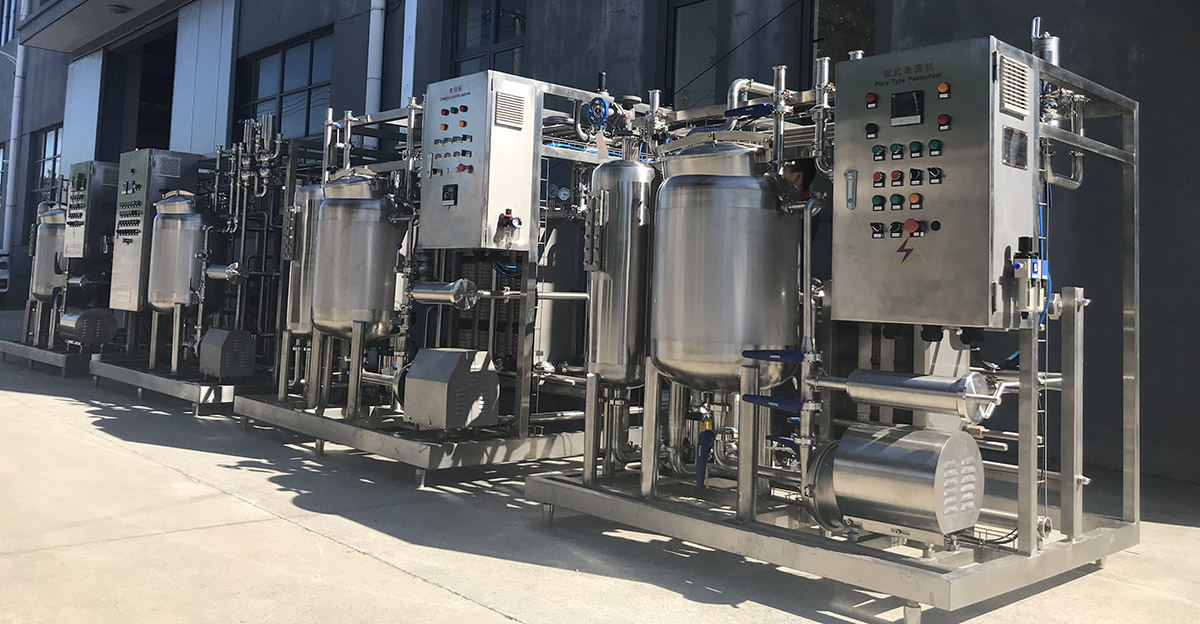

Equipment Picture

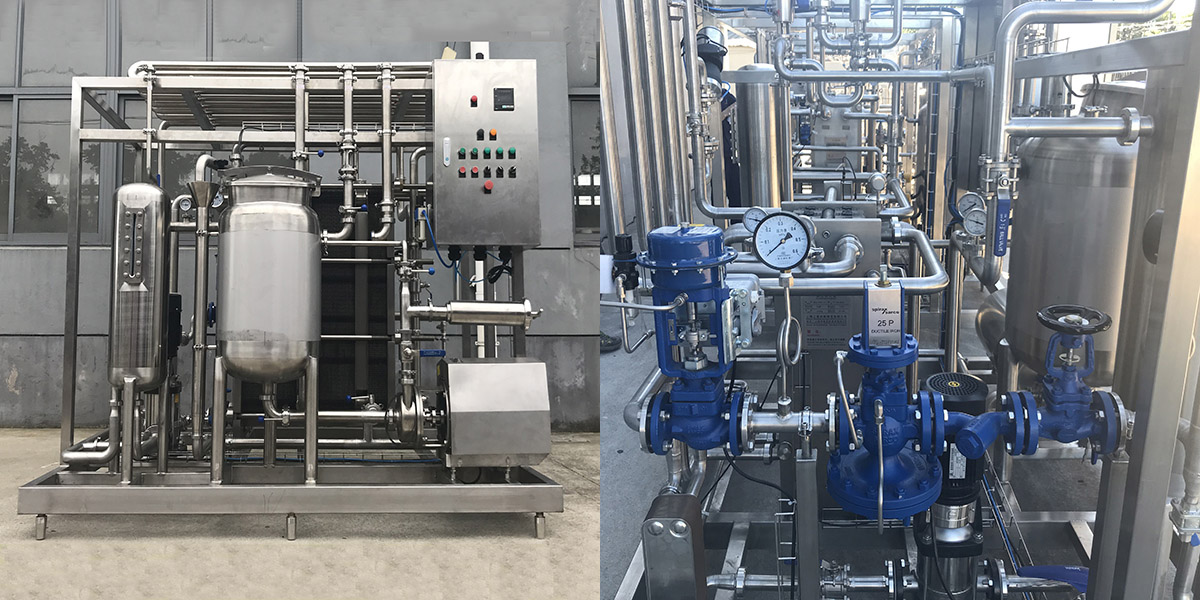

Equipment Details
Technical Specification
| 1、Working Condition | ||||||||||||||
| Capacity | 0.5-4t/h | Material Inlet | 50℃ | Steam Pressure | 0.6MPa | |||||||||
| 2、Design Requirement | ||||||||||||||
| Material Sterilization Temperature | 75℃ | Holding Time | 15S | Material Outlet Temperature | 60℃ | |||||||||
| 3、Main Technical Parameters | ||||||||||||||
| Item | Technical Parameter | Item | Technical Parameter | |||||||||||
| Model | SPTP-0.5/4T | Power | 5.5-10.5KW | |||||||||||
| Heat Exchange Area | 38M2 | Product Inlet/Outlet | φ38×1.5mm | |||||||||||
| Product Pipe Material, Diameter | SUS316L、￠12×1 | Cooling Water Inlet/Outlet | φ63×1.5mm | |||||||||||
| Outer Pipe Material, Diameter | SUS304、￠57×2 | Cooling Water Consumption | 9t/h | |||||||||||
| Automatic Control Of Sterilization Temperature | ±1℃ | Steam Pipe Diameter | φ50.8×3mm | |||||||||||
| Cleaning Type | Self CIP System | Steam Consumption | 150Kg/h | |||||||||||
| Compressor Air Consumption | 0.1M3/min | Compressor Air Pressure | 0.6Mpa | |||||||||||
| Weight | 1.6t | Dimensions | 4500×2000×2500 | |||||||||||
| 4、Configuration List | ||||||||||||||
| No | Item | Model Or Specification | Qty | Manufacturer | Remark | |||||||||
| 1 | Main body of tubular heat exchanger | SPTP-0.5/4T | 1 | Hebeitech | ||||||||||
| 2 | Brazed Heat Exchanger | 2M2 | 1 | Hebeitech | ||||||||||
| 3 | Balance Tank | 120L | 1 | Hebeitech | ||||||||||
| 4 | Hot Water Tank | 80L | 1 | Hebeitech | ||||||||||
| 5 | Centrifugal Pump | 10T/50M | 1 | Hebeitech | Power: 4KW | |||||||||
| 6 | Centrifugal Pump | 10T/50M | 1 | Hebeitech | Power: 4KW | |||||||||
| 7 | Hot Water Pump | CDL | 1 | CNP | Power: 2.2KW | |||||||||
| 8 | Steam Regulate Valve | DN32 | 1 | UK Spirax Sarco | ||||||||||
| 9 | Steam Pressure Reducer Valve | DN32 | 1 | UK Spirax Sarco | ||||||||||
| 10 | Steam Plunger Valve | DN32 | 1 | UK Spirax Sarco | ||||||||||
| 11 | Steam Filter | DN32 | 1 | UK Spirax Sarco | ||||||||||
| 12 | Steam Trap | DN25 | 1 | UK Spirax Sarco | ||||||||||
| 13 | Hot Water Back Pressure Valve | Pneumatic Back Pressure Valve | 1 | Hebeitech | ||||||||||
| 14 | Hot Water Switch Valve | Two Position Two Way Pneumatic Valve | 1 | Hebeitech | ||||||||||
| 15 | Constant Pressure Valve | ￠38 | 2 | AFLF/APV/GEA | ||||||||||
| 16 | Two Position Four Way Pneumatic Valve | ￠38 | 2 | AFLF/APV/GEA | ||||||||||
| 17 | Two Position Three Way Pneumatic Valve | ￠38 | 1 | AFLF/APV/GEA | ||||||||||
| 18 | Flow Meter | 0-10T/H | 1 | E+H | ||||||||||
| 19 | Acid And Alkali Diaphragm Pump | P0.29 | 2 | USA Wilden | ||||||||||
| 20 | Electrical Control Box | 304 | 1 | Hebeitech | ||||||||||
| 21 | Electrical Components | Match | 1 | France Schneider | ||||||||||
| 22 | Automatic Temperature Recorder | Match | 1 | Japan Yokogawa | Paperless Recorder | |||||||||
| 23 | Temperature Sensor | Pt100 | 3 | Germany Jumo | ||||||||||
| 24 | Concentrated Acid And Alkali Cylinder | 100L | 2 | Hebeitech | ||||||||||
| 25 | 10 "Color Touch Screen | Match | 1 | Siemens | ||||||||||
| 26 | PLC Program Controller | Match | 1 | Siemens | ||||||||||
| 27 | Frame | 304 | 1 | Hebeitech | ||||||||||
