Sheet Margarine Packaging Line China Manufacturer

Short Description:

The sheet margarine packaging line is normally used for four side sealing or double face film laminating of sheet margarine, it will be along with the resting tube, after the sheet margarine is extruded from the resting tube, it will be cut into required size, then packed by film.


  • model: SP
  • brand: SP
  • Product Detail

    Product Tags

    Equipment Description


    The sheet margarine packaging line is normally used for four side sealing or double face film laminating of sheet margarine, it will be along with the resting tube, after the sheet margarine is extruded from the resting tube, it will be cut into required size, then packed by film.

    Technical Specification

    Technical parameters of sheet margarine packaging machine

    Packaging dimension : 30 * 40 * 1cm, 8 pieces in a box (customized)

    Four sides are heated and sealed, and there are 2 heat seals on each side.

    Automatic spray alcohol

    Servo real-time automatic tracking follows the cutting to ensure that the incision is vertical.

    A parallel tension counterweight with adjustable upper and lower lamination is set.

    Automatic film cutting.

    Automatic four side heat sealing.

    Main configuration list of equipment:

    Sew motor, PLC Mitsubishi or Siemens, Mitsubishi HMI, Servo motor Panasonic, Photoelectric sensor, sikc, other electronic components: Schneider

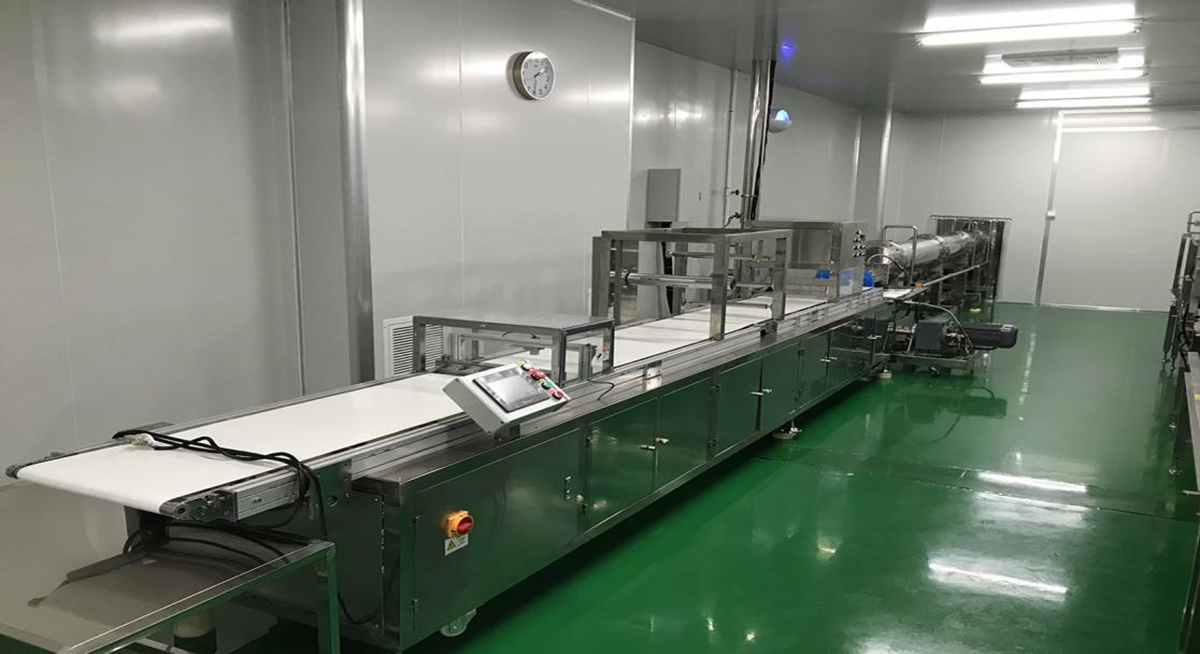

    Site Commissioning

    Puff Margarine Table Margarine Production Line China Manufacturer213
